Recommended products:Tonghui New Materials Equipment QLF Series Multi-function Triple Shaft Mixer

Hz info2025-08-01 09:49

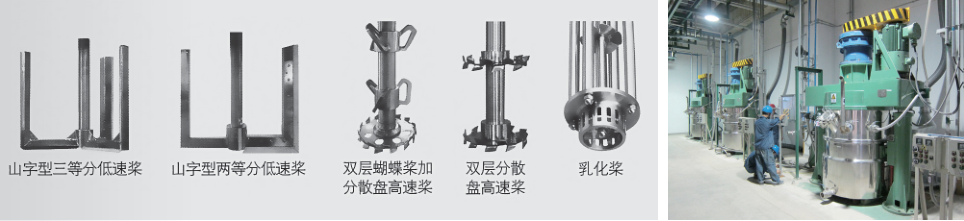

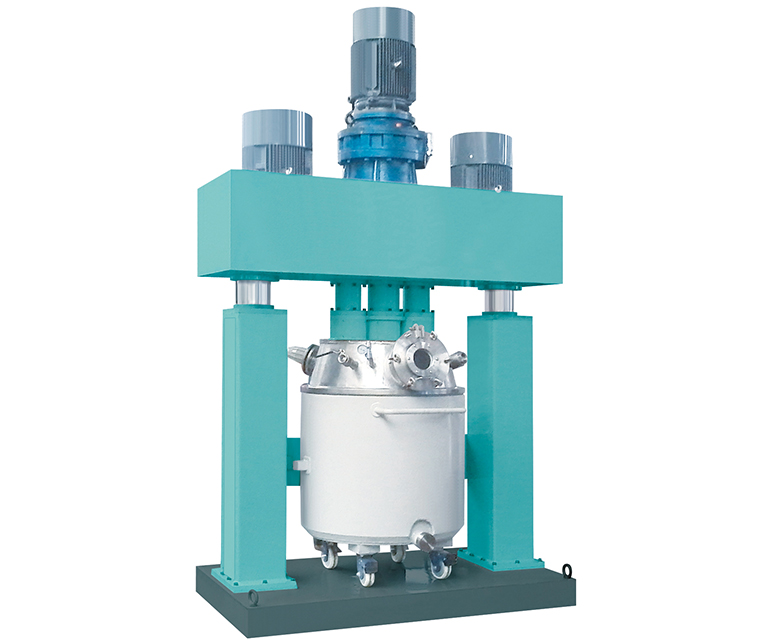

Tonghui triple shaft mixers have two high speed dispersers & a scrapper,the unique design will make the reactant fine dispersing.


Tonghui triple shaft mixers have two high speed dispersers & a scrapper,the unique design will make the reactant fine dispersing. They are widely used in high viscosity, cream material mixing, vulcanization, dispersing, milling, polymerization processing. Our machine have no blind mixing spot & easily discharging.

Tonghui triple shaft mixers are widely used in industries: silicone sealant, PU sealant, machinery sealant, liquid silicone, RTV, Electronic sealant, ink, pigment, dye, electronic paste, resin, plastic, tooth paste etc. Viscosity range from 10,000cps~2,000,000cps.

Product Details


 Type QLF-5 QLF-300 QLF-500 QLF-1000 QLF-2000 QLF-5000


  Design volume (L)

 5 300 500 1000 2000 5000


  Feeding volume (L)

 3 180 300 600 1200 3000


  Motor power (Kw)

 1.5×3 11×3 15×3 30×3 37×3 55×3


  Mixing speed (rpm)

 42 33 33 23
 23 23


  Dispersing speed (rpm)

 0~1500×2 0~1500×2 0~1500×2 0~980×2 0~980×2 0~980×2


  Vacuum (Mpa)

 -0.098 -0.098 -0.098 -0.098 -0.098 -0.098
